This is a simple questionnaire to get started with the basics.
◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉ ◉ ◉ ◉ When compiling C/C++ source code in Linux, an ELF (Executable and Linkable Format) file is created. ◉ ◉ The flags added when compiling can affect the binary in various ways, like the protections. ◉ ◉ Another thing affected can be the architecture and the way it's linked. ◉ ◉ ◉ ◉ If the system in which the challenge is compiled is x86_64 and no flag is specified, ◉ ◉ the ELF would be x86-64 / 64-bit. If it's compiled with a flag to indicate the system, ◉ ◉ it can be x86 / 32-bit binary. ◉ ◉ ◉ ◉ To reduce its size and make debugging more difficult, the binary can be stripped or not stripped. ◉ ◉ ◉ ◉ Dynamic linking: ◉ ◉ ◉ ◉ A pointer to the linked file is included in the executable, and the file contents are not included ◉ ◉ at linktime. These files are used when the program is run. ◉ ◉ ◉ ◉ Static linking: ◉ ◉ ◉ ◉ The code for all the routines called by your program becomes part of the executable file. ◉ ◉ ◉ ◉ Stripped: ◉ ◉ ◉ ◉ The binary does not contain debugging information. ◉ ◉ ◉ ◉ Not Stripped: ◉ ◉ ◉ ◉ The binary contains debugging information. ◉ ◉ ◉ ◉ The most common protections in a binary are: ◉ ◉ ◉ ◉ Canary: A random value that is generated, put on the stack, and checked before that function is ◉ ◉ left again. If the canary value is not correct-has been changed or overwritten, the application will ◉ ◉ immediately stop. ◉ ◉ ◉ ◉ NX: Stands for non-executable segments, meaning we cannot write and execute code on the stack. ◉ ◉ ◉ ◉ PIE: Stands for Position Independent Executable, which randomizes the base address of the binary ◉ ◉ as it tells the loader which virtual address it should use. ◉ ◉ ◉ ◉ RelRO: Stands for Relocation Read-Only. The headers of the binary are marked as read-only. ◉ ◉ ◉ ◉ Run the 'file'commandin the terminal and 'checksec' inside the debugger. ◉ ◉ ◉ ◉ The output of 'file'command: ◉ ◉ ◉ ◉ ✗ file test ◉ ◉ test: ELF 64-bit LSB executable, x86-64, version 1 (SYSV), dynamically linked, ◉ ◉ interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=5a83587fbda6ad7b1aeee2d59f027a882bf2a429, ◉ ◉ for GNU/Linux 3.2.0, not stripped. ◉ ◉ ◉ ◉ The output of 'checksec'command: ◉ ◉ ◉ ◉ gef➤ checksec ◉ ◉ Canary : ✘ ◉ ◉ NX : ✓ ◉ ◉ PIE : ✘ ◉ ◉ Fortify : ✘ ◉ ◉ RelRO : Partial ◉ ◉ ◉ ◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉
1 2 3 4 5 6 7 8 9 10 11
[*] Question number 0x1:
Is this a '32-bit' or '64-bit' ELF? (e.g. 1337-bit)

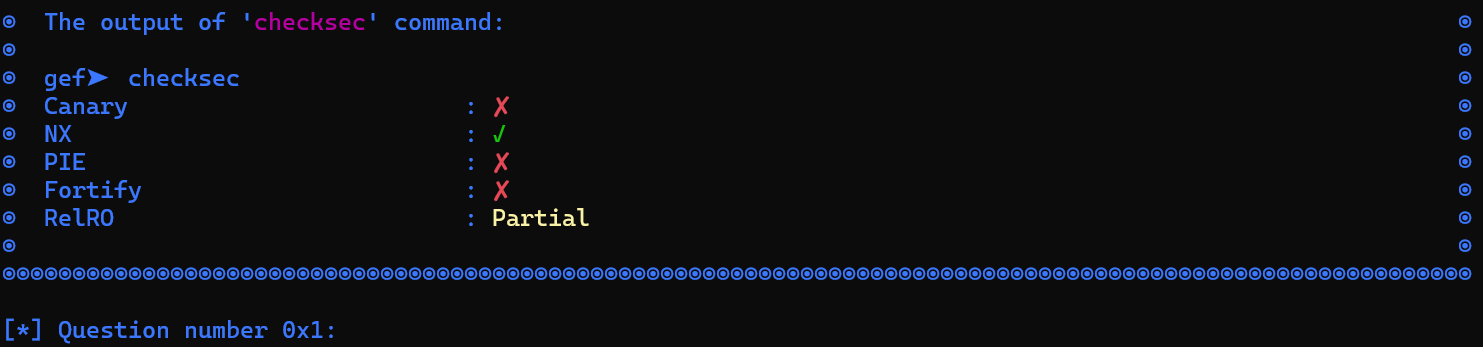

└─$ checksec test [*] '/home/test' Arch: amd64-64-little RELRO: Partial RELRO Stack: No canary found NX: NX enabled PIE: No PIE (0x400000) SHSTK: Enabled IBT: Enabled Stripped: No

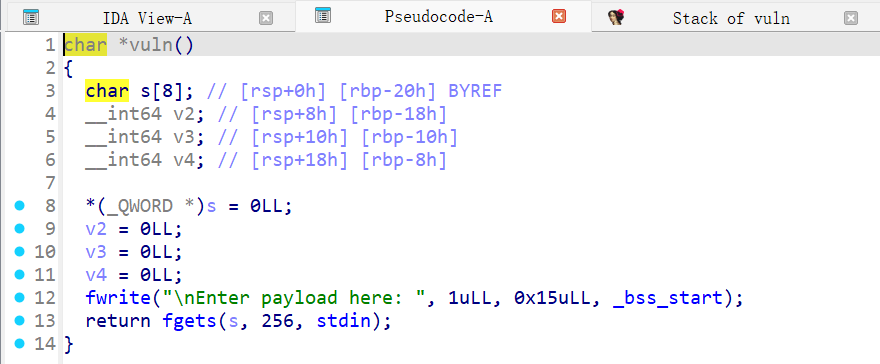

◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉ ◉ ◉ ◉ Great job so far! Now it's time to see some C code and a binary file. ◉ ◉ ◉ ◉ In the pwn_questionnaire.zip there are two files: ◉ ◉ ◉ ◉ 1. test.c ◉ ◉ 2. test ◉ ◉ ◉ ◉ The 'test.c' is the source code and 'test' is the output binary. ◉ ◉ ◉ ◉ Let's start by analyzing the code. ◉ ◉ First of all, let's focus on the '#include <stdio.h>' line. ◉ ◉ It includes the 'stdio.h' header file to use some of the standard functions like 'printf()'. ◉ ◉ The same principle applies for the '#include <stdlib.h>' line, for other functions like 'system()'. ◉ ◉ ◉ ◉ Now, let's take a closer look at: ◉ ◉ ◉ ◉ void main(){ ◉ ◉ vuln(); ◉ ◉ } ◉ ◉ ◉ ◉ By default, a binary file starts executing from the 'main()'function. ◉ ◉ ◉ ◉ In this case, 'main()' only calls another function, 'vuln()'. ◉ ◉ The function'vuln()' has 3 lines. ◉ ◉ ◉ ◉ void vuln(){ ◉ ◉ char buffer[0x20] = {0}; ◉ ◉ fprintf(stdout, "\nEnter payload here: "); ◉ ◉ fgets(buffer, 0x100, stdin); ◉ ◉ } ◉ ◉ ◉ ◉ The first line declares a 0x20-byte buffer of characters and fills it with zeros. ◉ ◉ The second line calls 'fprintf()' to print a message to stdout. ◉ ◉ Finally, the third line calls 'fgets()' to read 0x100 bytes from stdin and store them to the ◉ ◉ aformentioned buffer. ◉ ◉ ◉ ◉ Then, there is a custom 'gg()'functionwhich calls the standard 'system()'function to print the ◉ ◉ flag. This function is never called by default. ◉ ◉ ◉ ◉ void gg(){ ◉ ◉ system("cat flag.txt"); ◉ ◉ } ◉ ◉ ◉ ◉ Run the 'man <function_name>'command to see the manual page of a standard function (e.g. man fgets).◉ ◉ ◉ ◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉
1 2 3 4 5 6 7 8 9 10 11 12
[*] Question number 0x5:
What is the name of the custom function the gets called inside `main()`? (e.g. vulnerable_function())
◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉ ◉ ◉ ◉ Excellent! Now it's time to talk about Buffer Overflows. ◉ ◉ ◉ ◉ Buffer Overflow means there is a buffer of characters, integers or any other type of variables, ◉ ◉ and someone inserts into this buffer more bytes than it can store. ◉ ◉ ◉ ◉ If the user inserts more bytes than the buffer's size, they will be stored somewhere in the memory ◉ ◉ after the address of the buffer, overwriting important addresses for the flow of the program. ◉ ◉ This, in most cases, will make the program crash. ◉ ◉ ◉ ◉ When a function is called, the program knows where to return because of the 'return address'. If the ◉ ◉ player overwrites this address, they can redirect the flow of the program wherever they want. ◉ ◉ To print a function's address, run 'p <function_name>' inside 'gdb'. (e.g. p main) ◉ ◉ ◉ ◉ gef➤ p gg ◉ ◉ $1 = {<text variable, no debug info>} 0x401176 <gg> ◉ ◉ ◉ ◉ To perform a Buffer Overflow in the simplest way, we take these things into consideration. ◉ ◉ ◉ ◉ 1. Canary is disabled so it won't quit after the canary address is overwritten. ◉ ◉ 2. PIE is disabled so the addresses of the binary functions are not randomized and the user knows ◉ ◉ where to return after overwritting the return address. ◉ ◉ 3. There is a buffer with N size. ◉ ◉ 4. There is a function that reads to this buffer more than N bytes. ◉ ◉ ◉ ◉ Run printf'A%.0s' {1..30} | ./test to enter 30*"A" into the program. ◉ ◉ ◉ ◉ Run the program manually with "./test" and insert 30*A, then 39, then 40 and see what happens. ◉ ◉ ◉ ◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉◉
1 2 3 4 5 6 7 8 9 10 11
[*] Question number 0x8:
What is the name of the standard function that could trigger a Buffer Overflow? (e.g. fprintf())
